Features

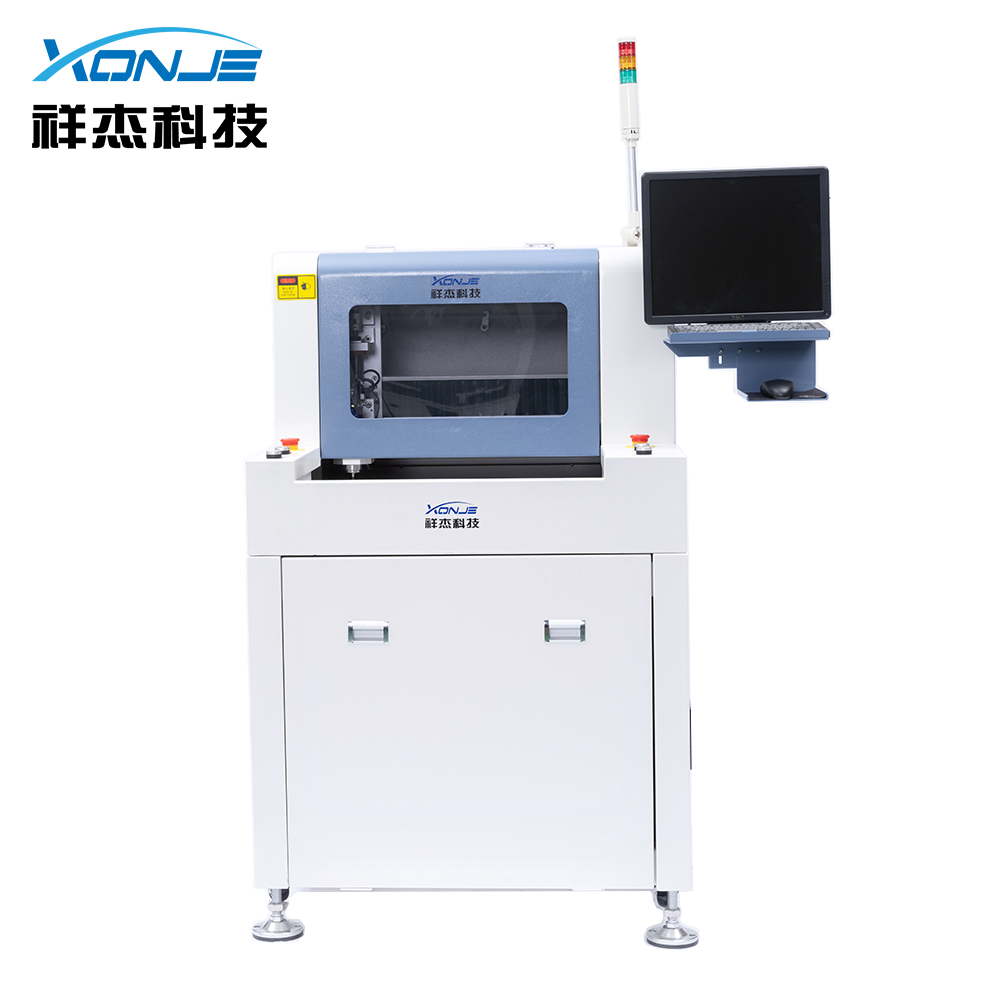

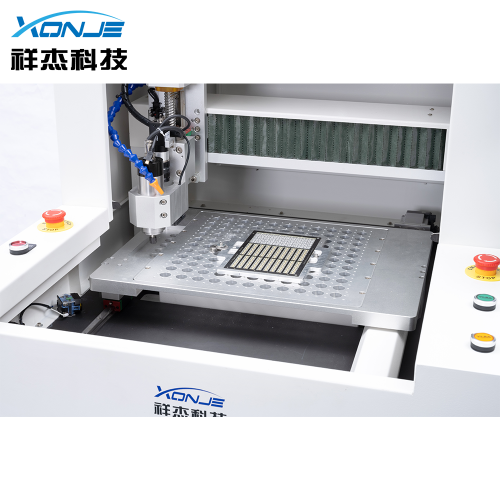

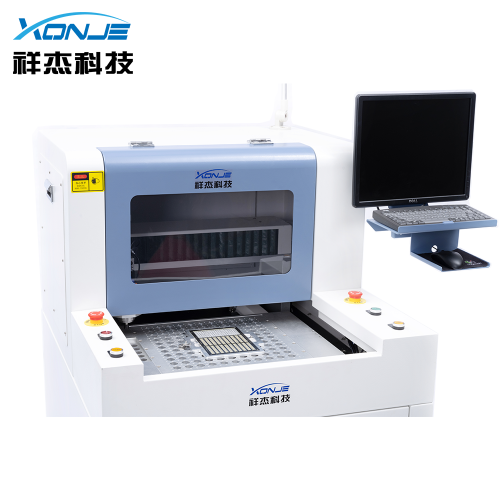

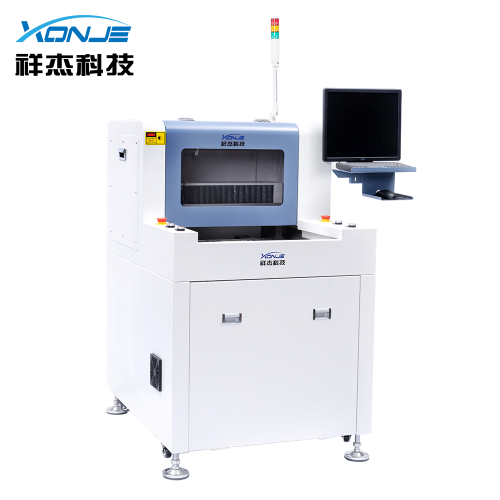

XJ-L400Z series mainly use milling cutters to run at high speed, single-platform three-axis servo drive to split the multi-piece PCB according to pre-programmed paths, replacing manual breaking or V-CUT or PUSH cutting defects, stress damage, Improve product quality and reduce scrap rate. This machine adopts human-computer interface, AC servo motor, WIN7 system operating interface, and high-pixel CCD production program teaches the editing of the cutting path, and can be modified and simulated in a single step. Higher production efficiency and quality. The software has MAKE compensation, equipped with large, medium and small windows for more precise programming. A rectangular frame is added on the basis of the original target. The programming is more intuitive to achieve precise programming. MAKE geometric alignment is automatically captured, with faster response, more independent parameters, and more efficient High, the cutting accuracy is more guaranteed.
Technical parameter
工作台面积
Workbench area
400*400mm
X.Y.Z 行程
X.Y.Z stroke
350*380*50mm
显示设备
Display screen
17寸电脑显示屏
17 inch computer display
集尘方式
Dust collection method
可选上吸或下吸
Optional upper dust collection or lower dust collection
丝杆/导轨
Screw/rail
HIWIN
主轴转速
Spindle speed
2000-60000rpm/min
驱动系统
Drive System
三轴伺服马达 Three-axis servo motor
主轴刀具
Spindle tool
φ0.8-3mm
定位精度
Positioning accuracy
±0.01mm
切割速度
Cutting speed
0-100mm/sec
切割功能
Cutting function
可执行直线，L型,U型,圆弧，整圆的切割
Executable straight line, L type,U type, arc,Full circle cut
控制主机
Control host
工业电脑Industrial Computer
机台尺寸
Machine size
L830*W1020*H1400mm
集尘箱尺寸
Dust box size
L700*W400*H720mm
电源功率 Power
三相380V/3KW含吸尘器
Three-phase 380V/3KW with vacuum cleaner
机台重量
Machine weight
240KG
