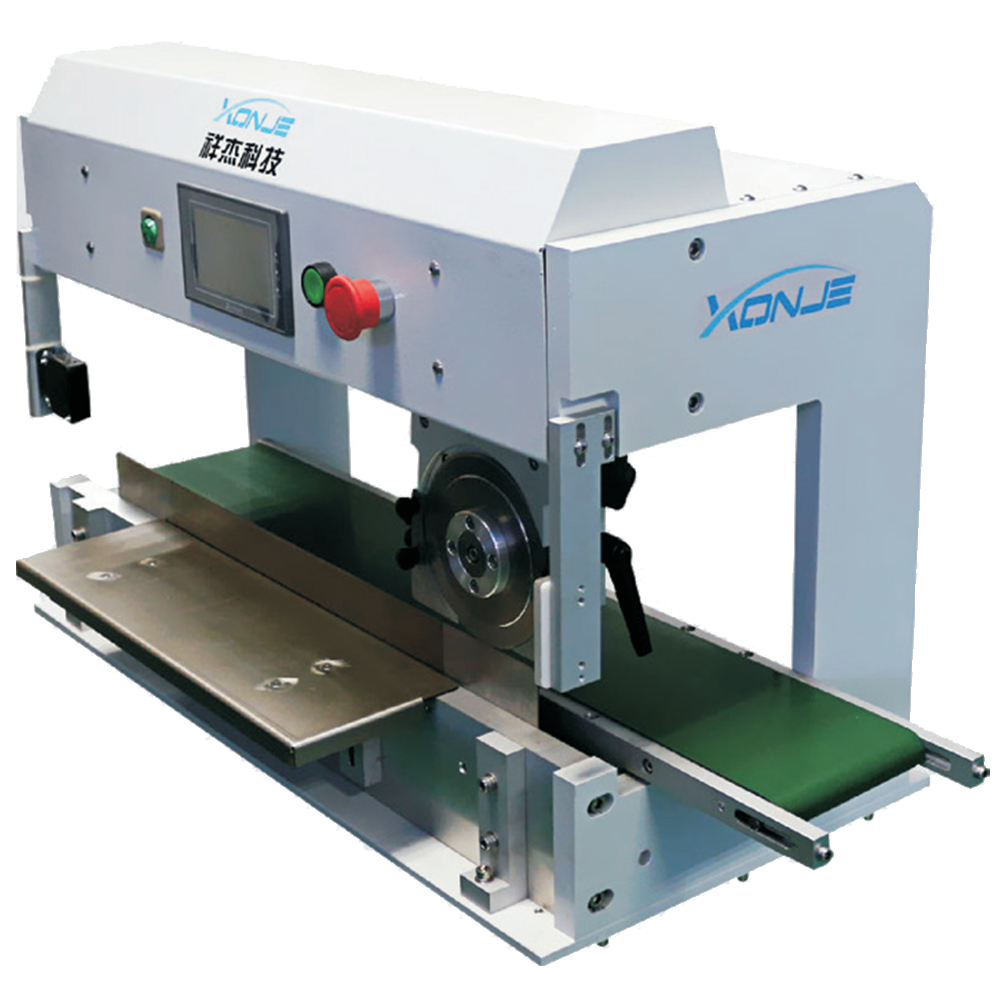

Features
1 .The sliding speed of the round knife can be adjusted.
2.The PCB does not move during the cutting process, and the circular knife slips to ensure that the electronic components of the substrate are not damaged due to movement.
3.In response to the depth of the V groove and tool wear, the distance between the upper round knife and the lower straight knife can be adjusted accurately.
4. By customizing the blade, it is possible to realize the separation of components across the V-slot.
5. Minimize the internal stress generated when cutting the board to avoid tin cracking.
6. The slitting speed is controlled by the knob, and the slitting stroke can be set freely and has a touch screen display.
7.Conveyor belts can be installed as required to improve performance.
8. Equipped with photoelectric switch protection to ensure safe production.
Technical parameter
|
分板长度Maximum cut-board length |
350mm、600mm或定制(350mm, 600mm or customized) |
|
分板速度board splitting speed |
100/200/300/500mm/s Adjustable |
|
分板厚度board thickness |
0.3-3.5MM |
|
使用电压working voltage |
220V AC 500W |
|
机器重量Machine weight |
55KG |
|
外形尺寸 Dimensions(L*W*H) |
750*400*510MM |
