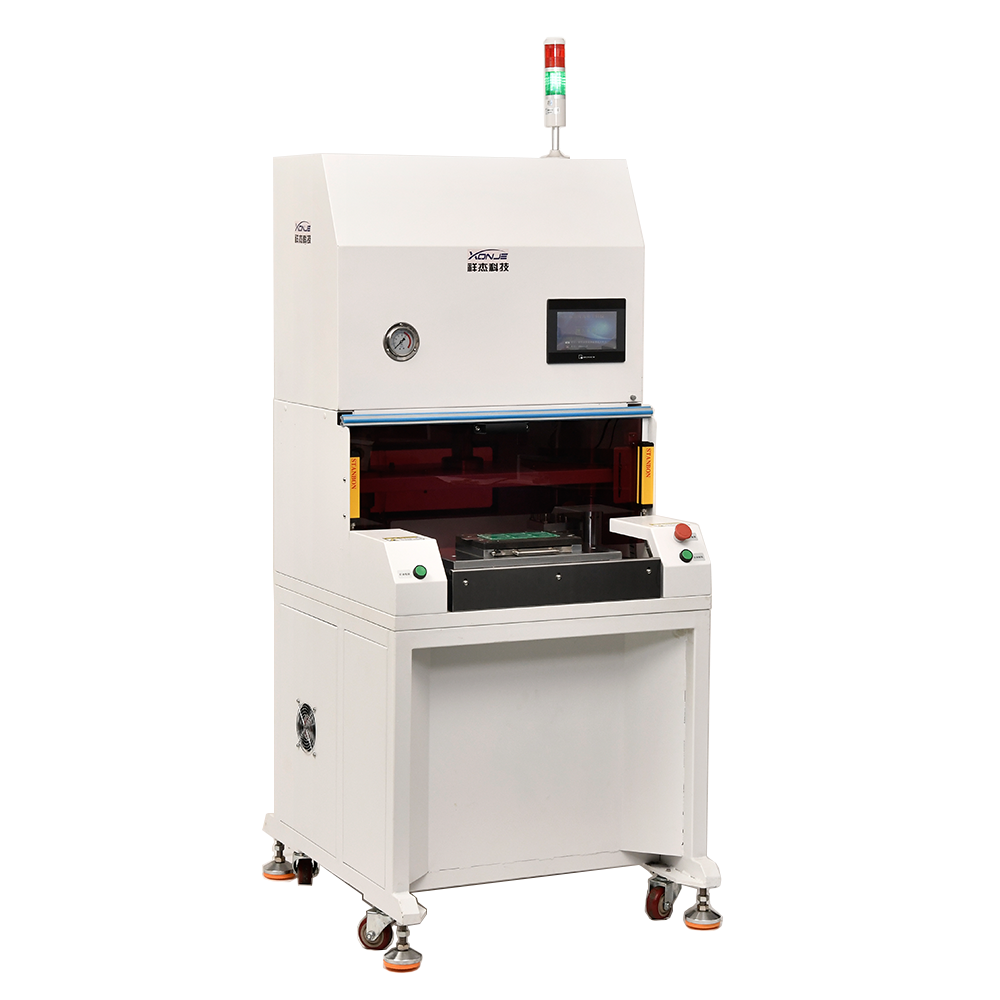

Features
1 .Adopting the design of fast-increasing cylinder, the speed is fast;
2. Compact structure design, super rigidity, easy operation and safe use;
3. Change different molds according to different products, and the moldchange is convenient and simple;
4. The lower mold automatically enters and exits, it is convenient to take and place the product, and the finished product can be dropped into the drawer;
5. Minimize the internal stress generated during cutting and avoid component tin cracking;
6. The efficiency of punching semi-finished PCB, FPC and aluminum substrates is extremely high;
7. PLC control, man-computer exchange interface, Chinese and English display and alarm functions such as counting and air pressure detection;
8. Control system
(1 (Realize emergency stop under abnormal conditions, and set sound and light alarm;
(2) Abnormal situation realizes emergency stop, and set sound and light alarm;
(3) Emergency stop buttons and alarm devices are installed at both ends of the equipment;
(4) The control panel is locked to prevent unauthorized personnel from modifying and setting parameters;
(5) Equipped with an independent power distribution cabinet, the circuit is divided into functional blocks, strong current and weak current blocks, easy to maintain;
(6) The system sets up an overload protection system;
9. Touch screen
(1 (Operation authority can be set, control methods: point touch, manual, semiautomatic, output storage, statistics and error information storage;
(2)ln the parameter setting (engineer level: setting authority is required), the program (each station) can be selected and set, real-time monitoring, parameter setting and so on.
Technical parameter
|
工作方式 Operation mode |
环保增压式 Environmental protection Supercharged cylinder |
环保增压式 Environmental protection Supercharged cylinder |
|
出力 Force output |
10T |
10T |
|
放板面积 Board area |
250*350MM |
350*550MM |
|
使用电压 Service voltage |
220VAC |
|
|
工作气压 Working pressure |
0.5-0.7MPA |
|
|
机器重量 Machine weight |
600KG |
700KG |
|
长*宽*高 L*W*H |
810*1025*1750MM |
910*1025*1750MM |
