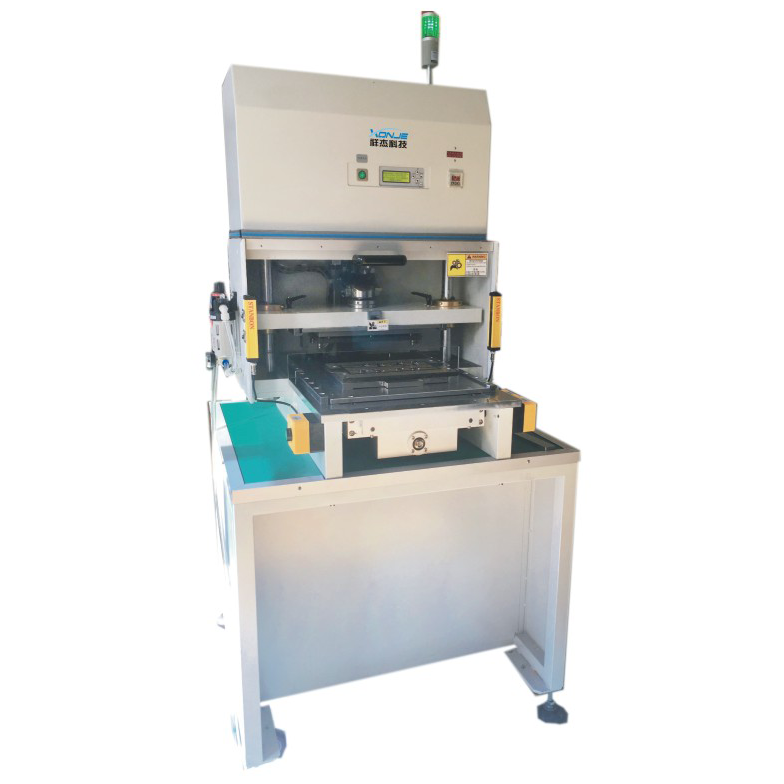

Features
1. High degree of automation, simple and safe operation;
2. A variety of molds can be replaced, and the mold change is convenient and easy;
3. Automatic entry and exit of the lower mold, easy access to the product, and the finished product can be dropped into the drawer;
4. Minimize the internal stress generated when cutting the board and avoid tin cracking;
5. The efficiency of punching semi-finished PCB and FPC is extremely high;
6. The number of punches can be set through the touch screen, and the number of device splits can be exported;
7. With double protection of safety grating and safety door, the operator's operation is safer;
8. Mechanical pneumatic slitting FPC and PCBA die punching machine, with little stress and no damage to the components.
Technical parameter
型号Model
XJPM
XJPL
工作方式 Operation mode
环保机械气压式
Environmental protection mechanical pneumatic
环保机械气压式.
Environmental protection mechanical pneumatic
出力 Force output
8T
8T
放板面积 Board area
330*220MM
460*320MM
使用电压 Service voltage
220VAC
工作气压 Working pressure
0.5-0.7MPA
机器重量 Machine weight
500KG
650KG
长*宽*高 L*W*H
850*800*1750MM
1000*960*1750MM
