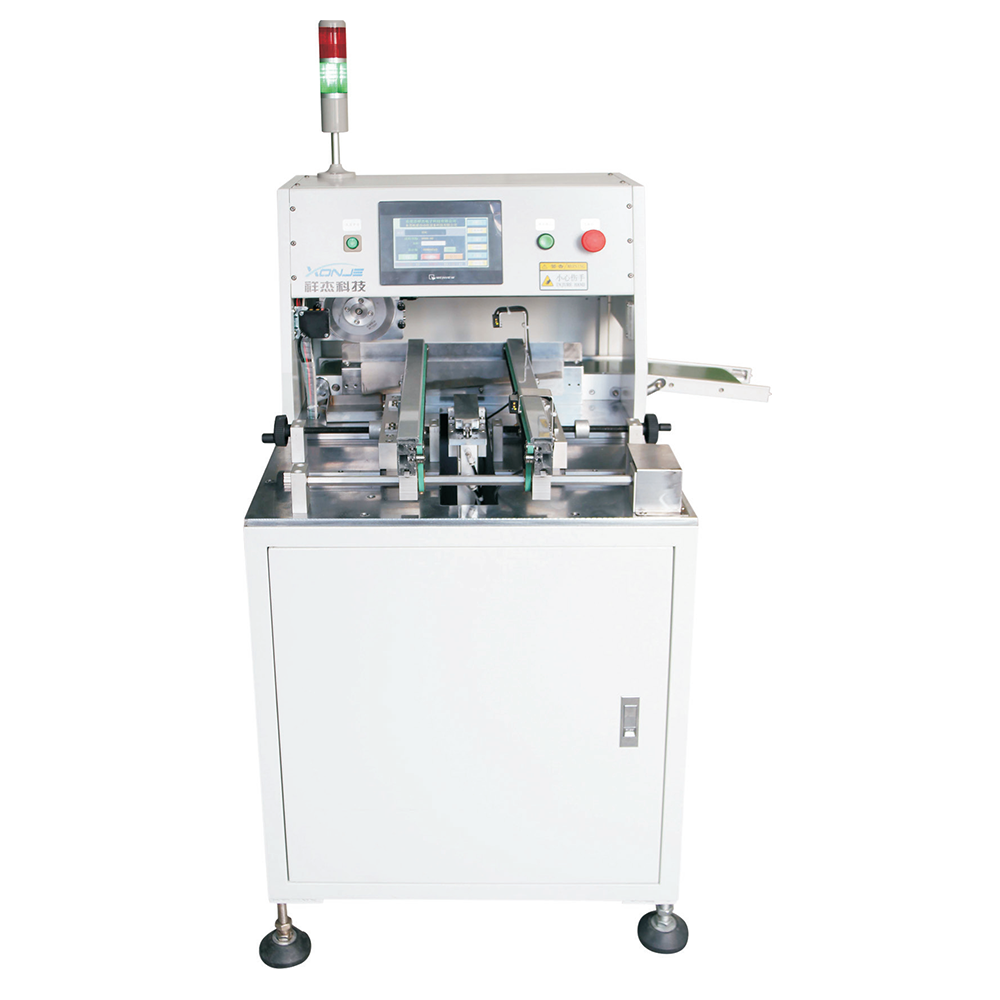

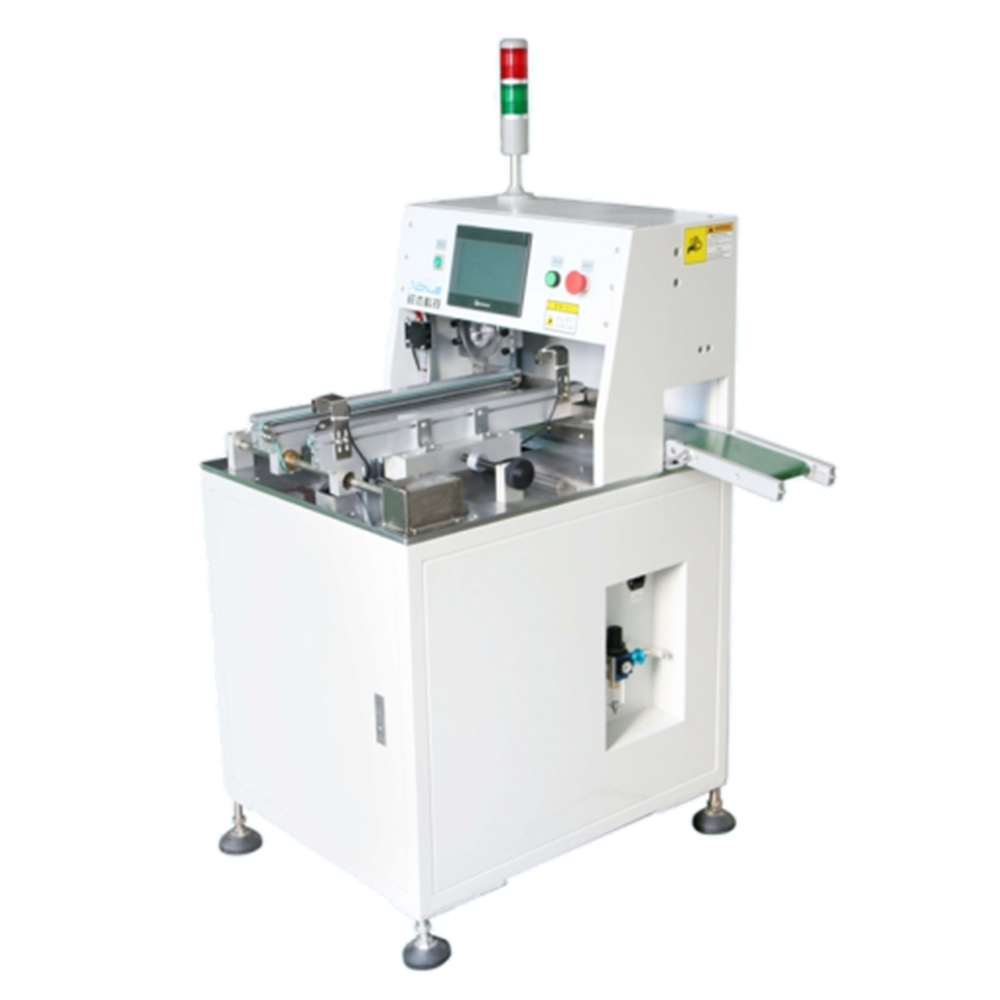

Features

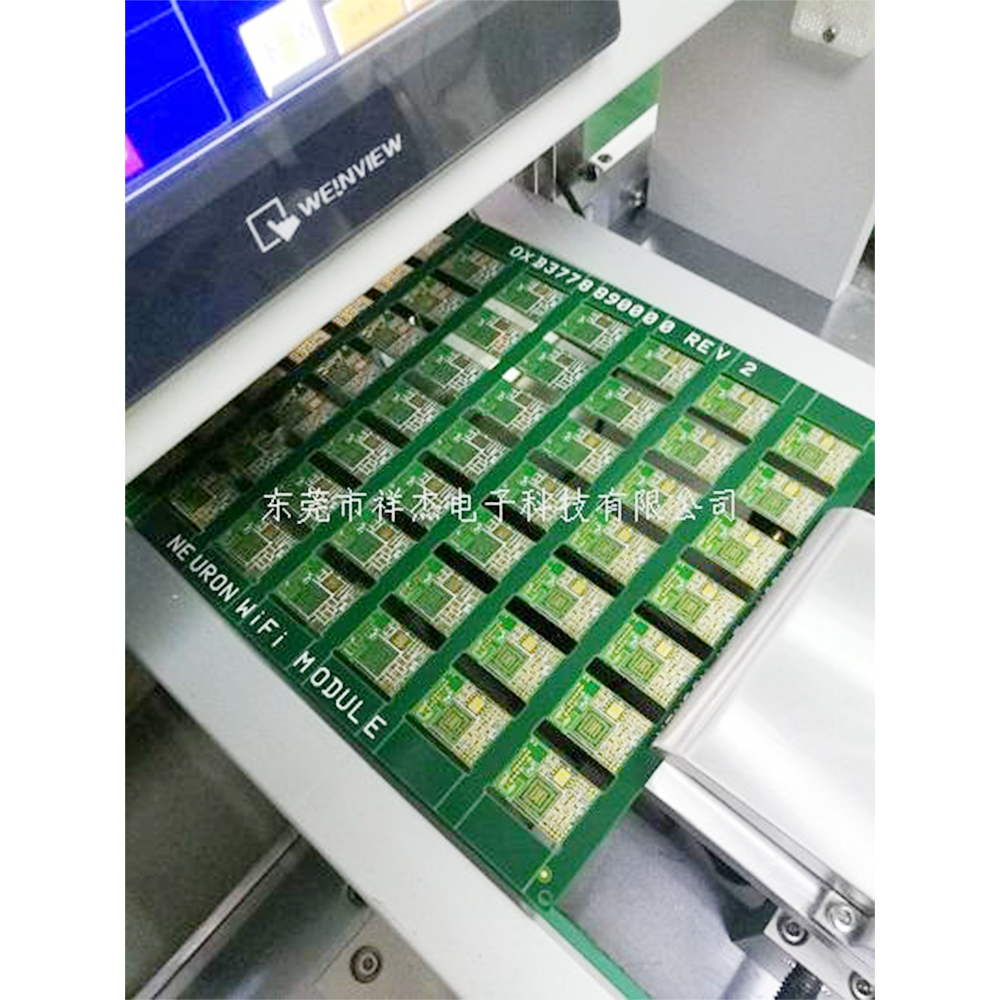

1 .Using program control to automatically feed and divide the board, a whole V-groove panel can be automatically divided, the operation is simple and convenient to use, the efficiency is high, and it is completely unmanned;2. Using the lower straight knife to fix and the upper round knife to move the knife, the stress is small, and it is very good to ensure that the circuit board will not produce various hidden injuries during the process of dividing the board;

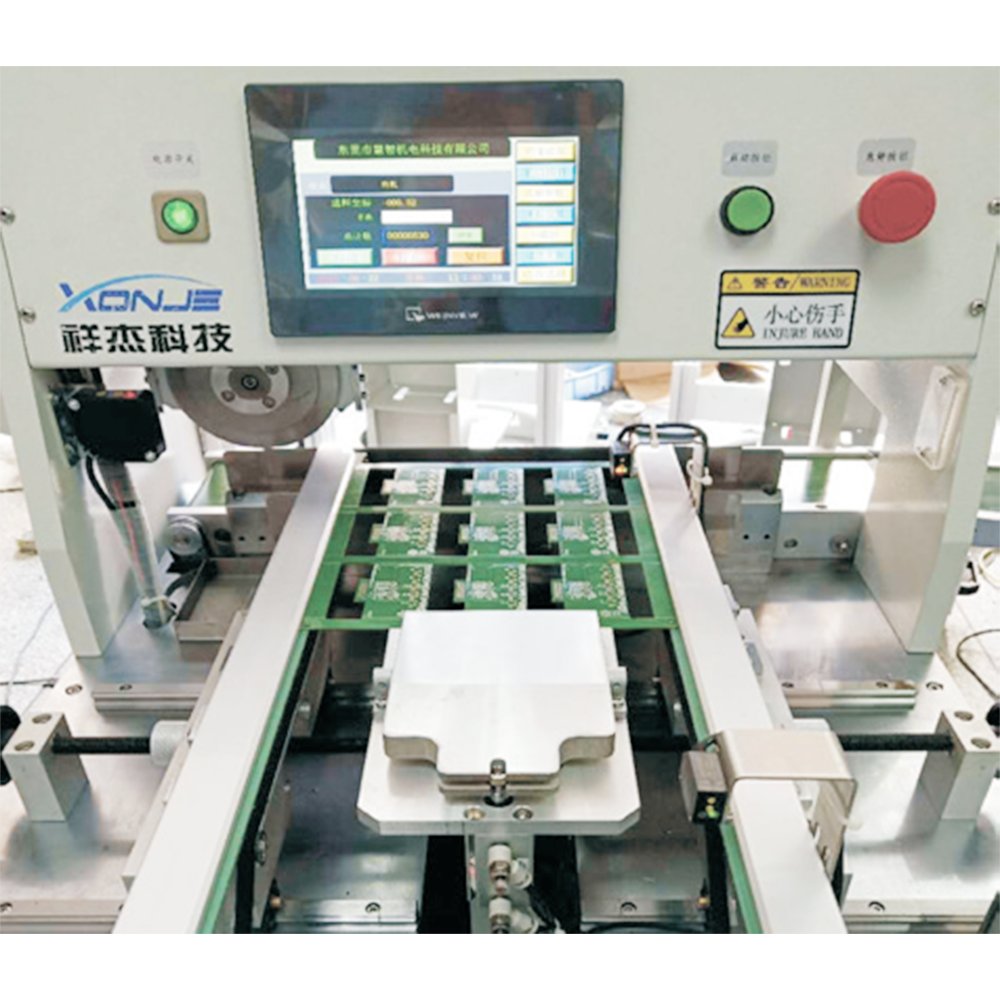

3. The touch screen display has an automatic counting function, and the output can be displayed intuitively;
4. The cutting tool is made of high-quality high-speed steel imported from Germany,which has the highest durability in the market after testing;
5.Online cut-board, safe, reliable, and fast;

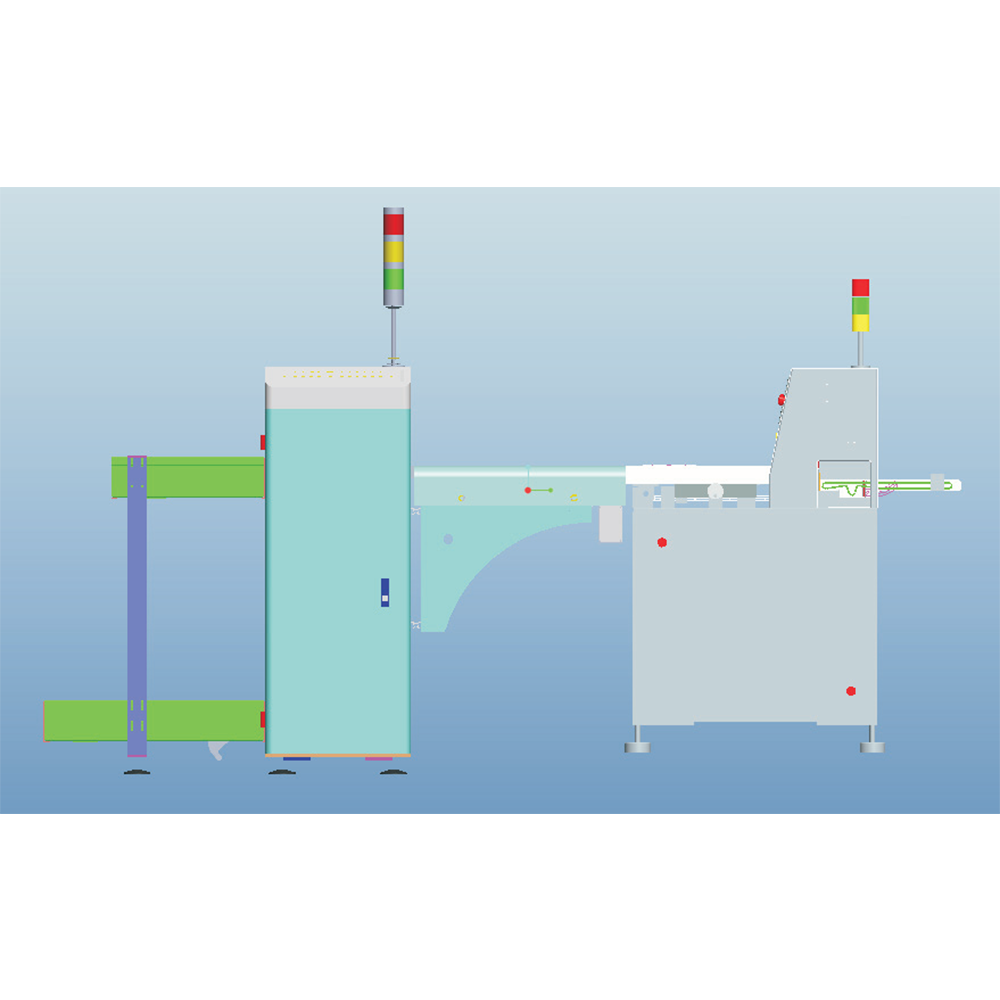

6.The finished boards after cutting are automatically flowed into the assembly line, Efficient and fast.
Technical parameter
|
最大分板长度 Maximum cut-board length |
350mm |
|
分板宽度Cut-board width |
58mm-220mm |
|
底面元器件限高 Maximum cut-board length |
15mm |
|
刀片材料Blade material |
SKH9高速钢(SKH9 high speed steel) |
|
电源Power supply |
230V/110V,50HZ/60HZ 500W |
|
机器重量Machine weight |
105KG |
|
长*宽*高（L*W*H） |
950*730*1600MM |
