Device Configuration
1. This device is suitable for the cut-board of the PCB board after the plug-in Work;
2. It has the functions of automatic loading, automatic cutting, automatic unloading board, etc., and the machine is simple and quick to operate;
3. The setting of various parameters fully ensure the continuity of board loading and cutting;
4. The main transmission components adopt precision stepping motors and servo motors, and the pneumatic components adopt international brands, which makes the repeat positioning accuracy high;

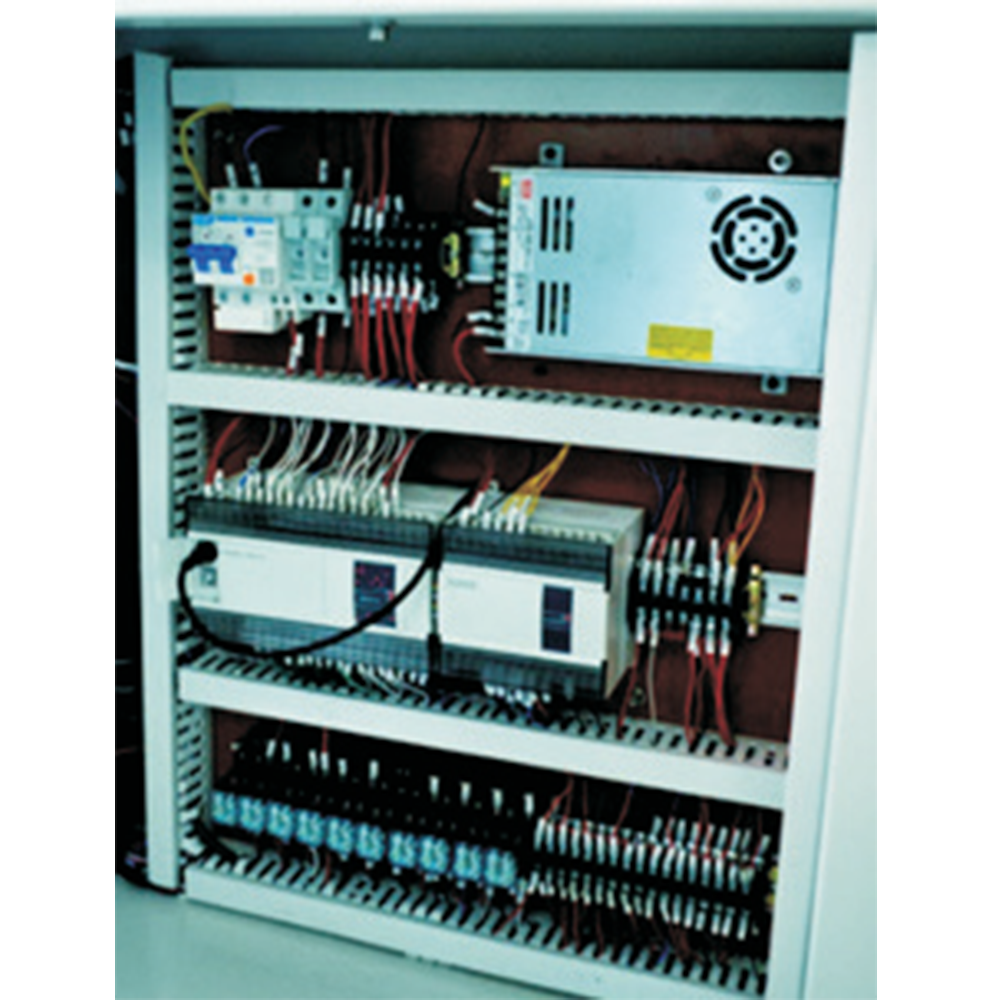

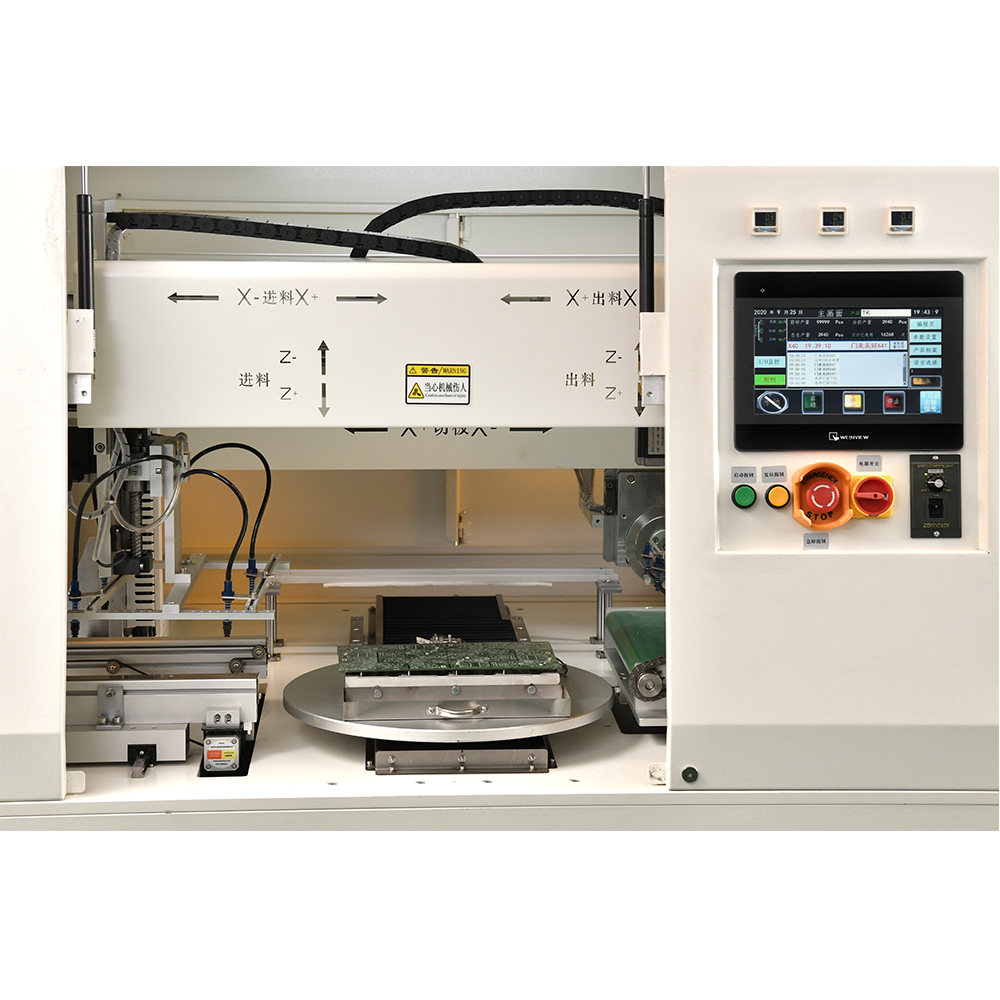

5. The whole machine adopts Mitsubishi PLC+WEINVIEW touch screen control,The operation interface is simple and convenient;
6. Equipment working voltage: 220 V 50Hz;
7. Efficiency: 25s/pcs (150*150mm,4 cuts For reference);
8. The working area is protected by a safety photoelectric switch.
Machine cut-board action description

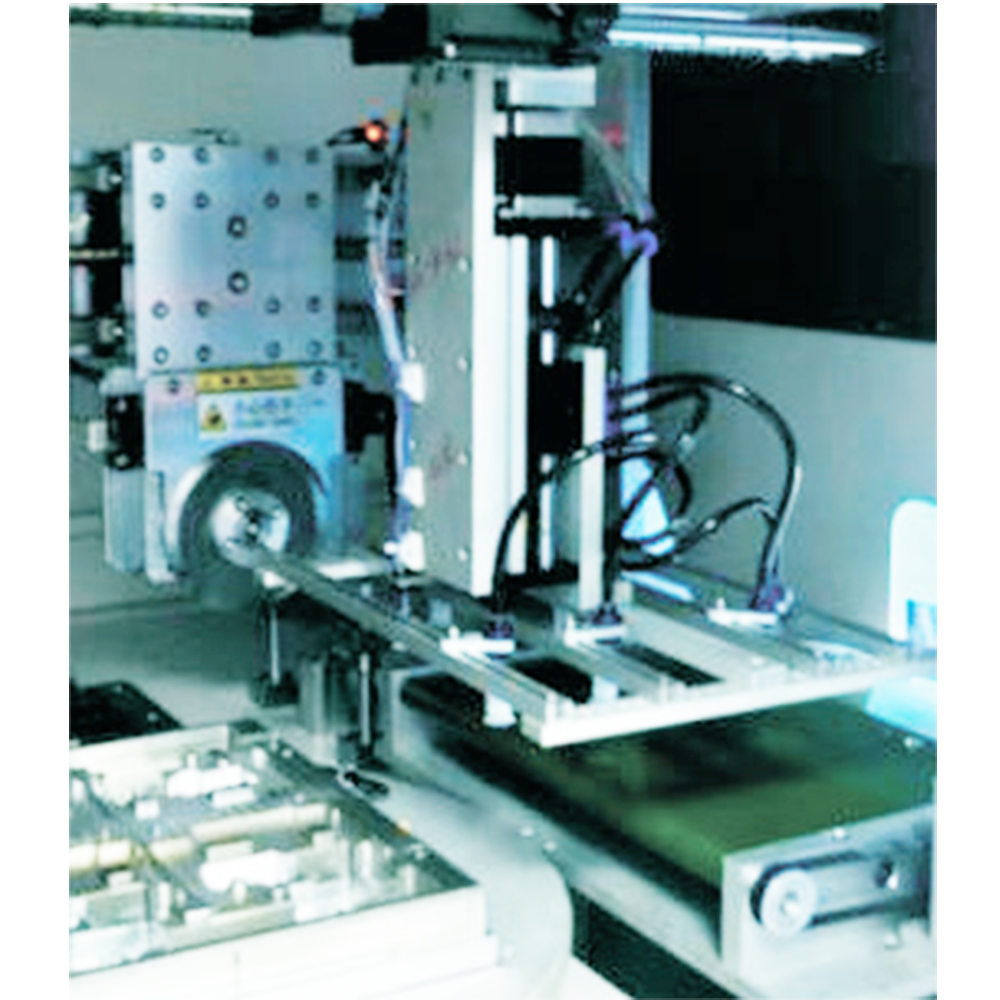

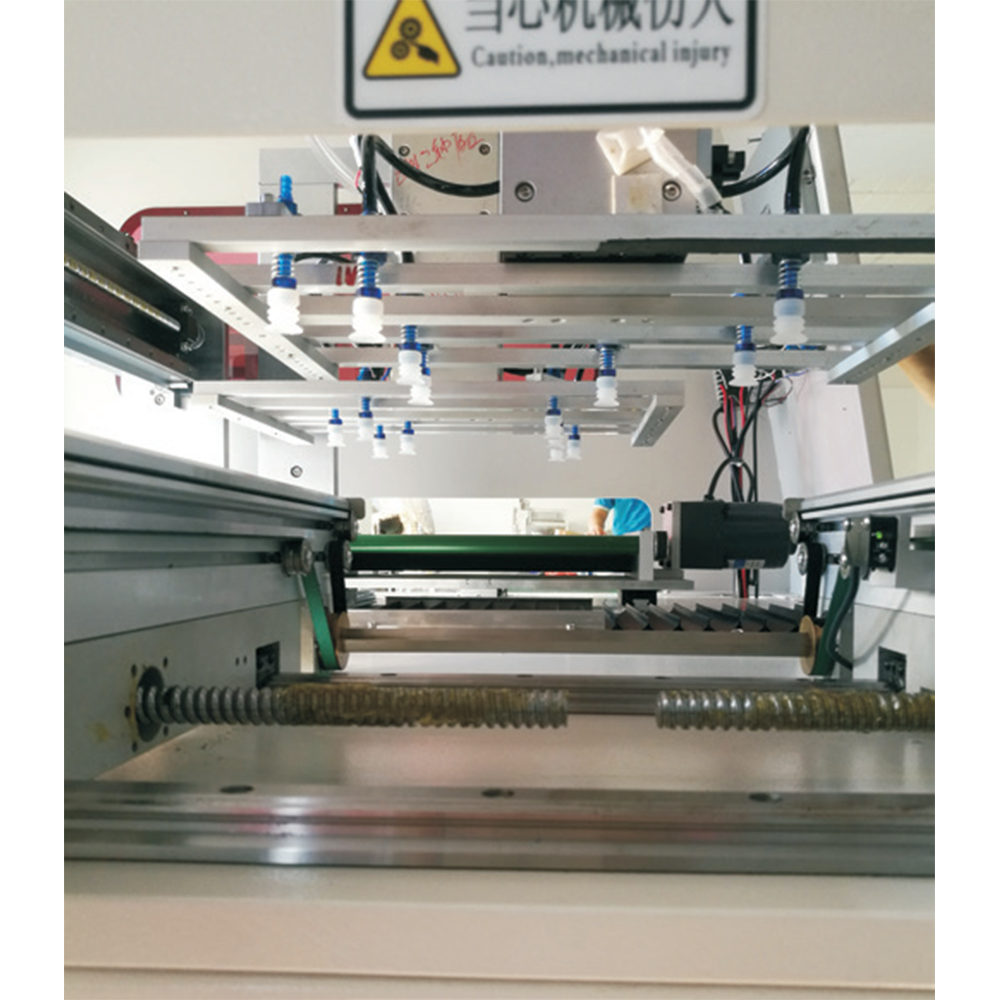

1.0ne machine is equipped with a lower cutting die module on the machine. The PCB board is sent out to the predetermined track through the board loading mechanism; the manipulator moves over and uses the vacuum nozzle to transport the PCB board to the knife die of the slitting machine.

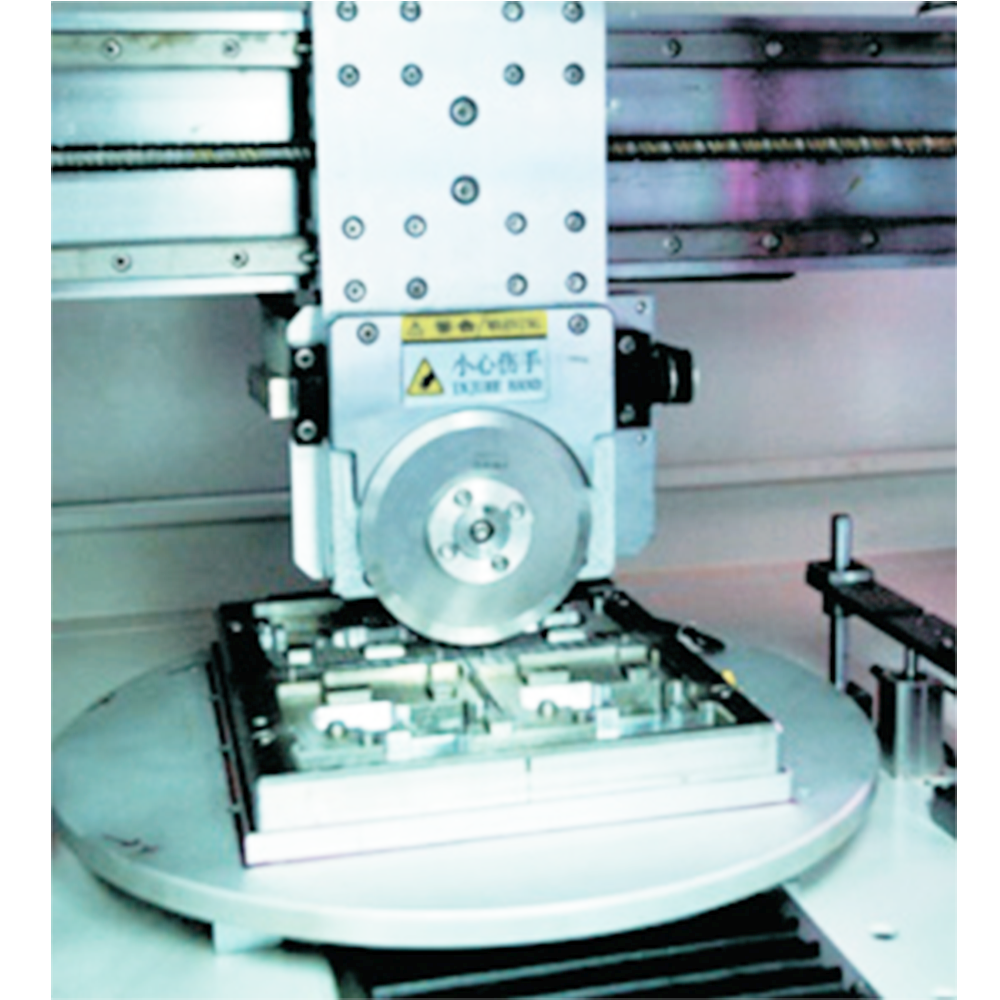

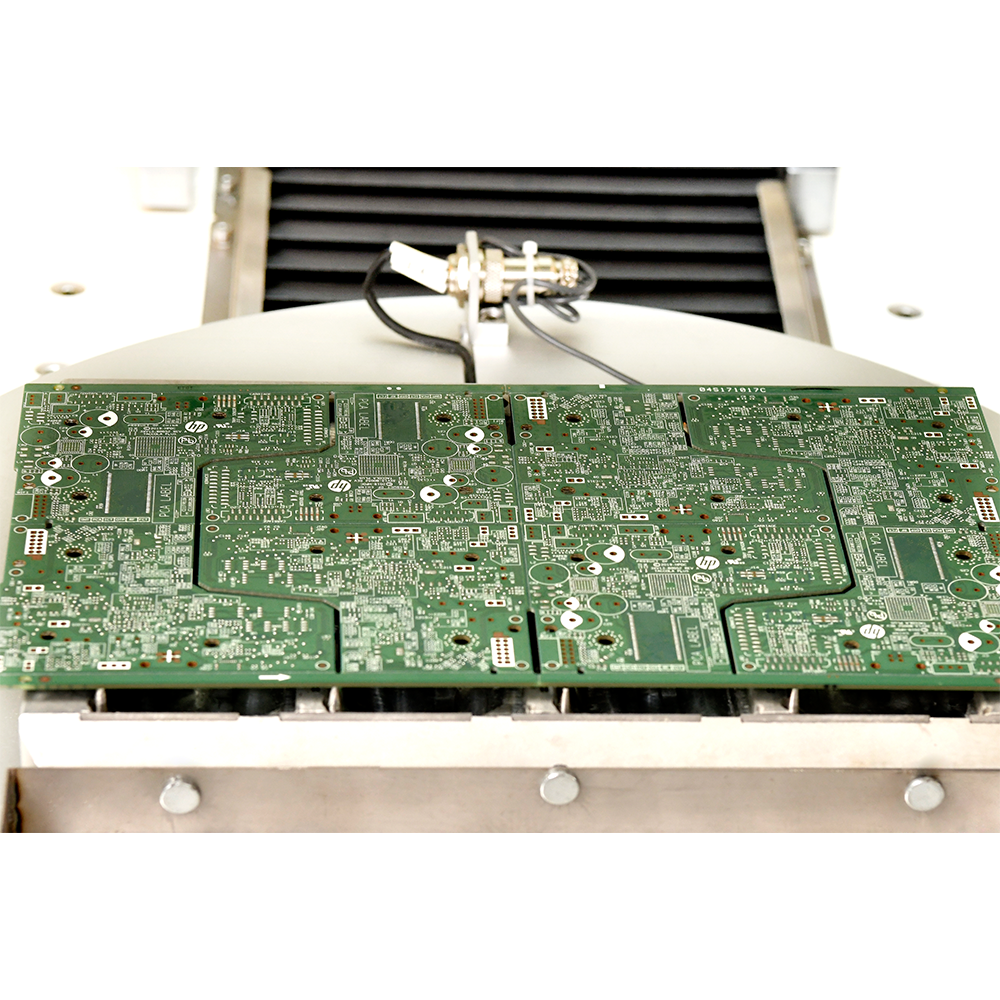

2. After the PCB is placed on the lower die module; move to the slitting position, the circular knife on the machine will translate and slit the PCB board. After the translation and slitting is completed, the lower die module will move to the slitting position again until the horizontal boards are divided. The hollow platform automatically and accurately rotates 90 degrees to slit the vertical board.
3. After the machine cuts the PCB, the die cutter group exits; the pick-up manipulator moves over to suck up the cuted PCB board and the scrap edge of the board at the same time, move it to the waste frame to put the waste, and then move it to the tray witch on the Unloading mechanism,finally sent away by the transportation line.
4. There is an industrial vacuum cleaner under the cutting die of the machine to suck away PCB dust. Work in this cycle.
Remarks: A piece of small circuit board that has been cut can be connected to the pick and place in tray machine.
Brief description of the machine

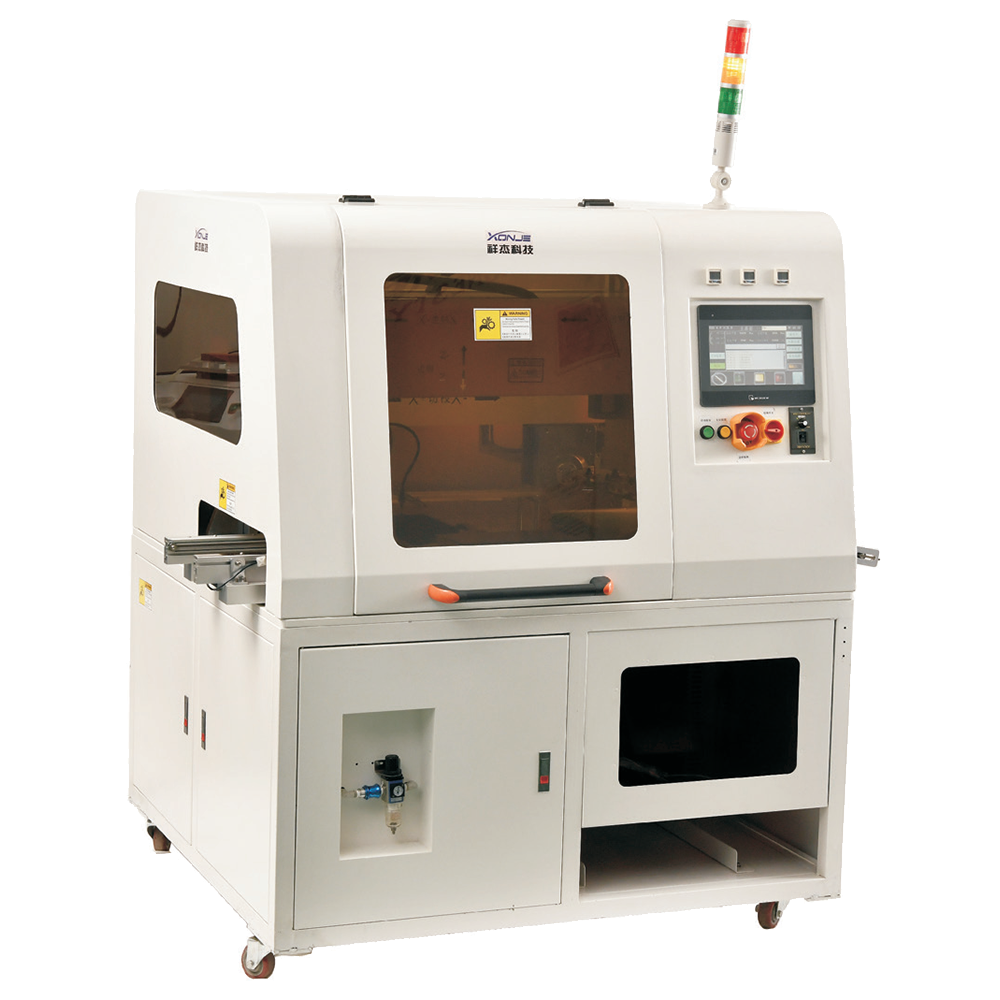

1 .Fully automatic on-line V-slot splitting machine has further improved the quality of splitting; it can realize the automatic splitting of V-slot X and Y directions, and split aluminum substrates, copper substrates, FR4, fiberglass board is cut clean and free of lint, and the splitter can be connected to the assembly line to realize automatic splitting without manual placement; the split boards are transported through the assembly line, which greatly saves manpower and fully realizes unmanned splitting operations.
2.When changing products, directly exchange the die part and the suction cup part without manual adjustment of the knife, which greatly saves time.
Features:
1. The equipment adopts a single group of multi-knife automatic splitting, making different knives according to different products. And it is convenient and quick to change products;
2. The electrical control part can be selected in the human-computer interface, which is convenient to open or shield;
3. Human-machine interface, light curtain form and acrylic cover are used on the table to ensure safety;
4. There is a dust collecting tray under the splitting knife mold(can be equipped with a dust suction device according to customer requirements);
5. Floor-standing structure is adopted as a whole;
6. The frame of the automatic line equipment adopting square steel welded frame,sheet metal sealing plate,surface baked steel paint;
7. The work surface of the equipment is made of 45# steel plate or AL6061 aluminum plate, and the surface is chrome-plated/oxidized;
8. The equipment is suitable for all jigsaw panels with V-slots;
9. Cutting material: fiberboard, aluminum substrate, copper substrate;
10. Knife mold accuracy: +0.1 MM;
11. Data monitoring system: boot time monitoring,capacity monitoring, equipment failure information and automatic rejection system, etc.;
12. Cut-board working method: use board feeder or direct suction cup to connect the assembly line to feed or suck PCBA into the sub-board mold. After the mold is installed, go through the set program route and follow the V-slot of the PCBA splicing board to finish. After slitting, the product and waste are sucked away by suction cups at the same time. The waste material is sent to the waste frame, and the product is sent to the tray on the assembly line and sent away. Fully realize unmanned production in cyclic operation.
Technical parameter
1.设备外形规格
机器名称Machine name
全自动在线V槽双向分板机
(On-line automatic two-way Cutting Machine)
机器型号Machine model
XJVC-10A
外形尺寸Overall dimension
L*W*H=1600*1100*1800mm
外形appearance
立式(vertical)
重量weight
600KG
颜色colour
电脑白(Computer white)
2.设备供应要求
电源供应Power supply
AC220V 3000W
环境要求Environmental requirements
清洁干燥环境，避免潮湿或高温
Clean and dry environment and avoid humidity or high temperature
工作气压/管径Working pressure / pipe diameter
≥0.6MP/8MM
零件离切割线最小距离Minimum distance from part to
≥1.5MM
最大和最小分板长度Maximum and minimum partition
300*250MM & 12*12MM
吸盘要求Suction cup requirements
单片小板至少有一面要有大于10MM*10MM的空位
(At least one side of a single small board shall have a space greater than 10mm * 10mm)
进板口调节board inlet adjustment
直接输入参数，自动调节
(Direct input of parameters, automatic adjustment)
PCB板元器件最高高度Maximum height of PCB
PCB反面零件限高20MM,正面限高为35MM
(The height limit of PCB reverse side parts is 20mm and the height limit of front side is 35mm)
3.设备软件部分
控制器Controller
PLC
参数设置Parameter setting
根据V槽的尺寸触摸屏直接输入
According to the size of the V-slot, it is input directly from the touch screen
储存模块Storage module
可储存50组程序
It can store 50 groups of programs
触摸屏touch screen
威纶触摸屏
WEINVIEW touch screen
光纤传感器Optical fiber sensor
欧姆龙OMRON
4.刀片
金属属性Metal properties
日本进口高速钢High speed steel imported from Japan
刀片角度Blade angle
10-30度（可选择）10-30Degree (optional)
使用寿命service life
5KM
刀模精度Knife mold accuracy
0.1MM
5.主控分板系统
更换刀组及吸盘时间
Replacement time of cutter set and suction cup
60minute
分板效率Board splitting efficiency
标准速度切4刀，25s/pcs（200*150mm） standard speed cut 4 knives，25s/pcs（200*150mm）
步进伺服器Step Servo
精密步进电机和伺服马达 Precision stepper motors and servo motors
导轨丝杆Guide screw
上银导轨丝杆HIWIN Guide rail screw
气动配件Pneumatic accessories
AIRTAC/SMC
流水线最大长度Maximum length and width of pipeline
650mm*250mm（可订制 customizable)
分板速度Board splitting speed
0-800mm/s
刀模底座运动方式Knife mold base movement mode
伺服系统+丝杆导轨Servo system + screw guide rail
吸盘机械手运动控制方式
Suction cup manipulator motion control mode
步进马达+导轨+皮带传动Stepper motor + guide rail + belt drive
吸尘方式及效率Dust collection mode and efficiency
刀组下吸尘1500W Dust suction under knife set 1500W
分板厚度Thickness of slitting board
0.4-3.5mm
6.其他功能
误操作防护Misoperation protection
光栅传感器及软件三重防护Triple protection of grating sensor and software
零件表面处理Part surface treatment
阳极电镀Anodic plating
安全防护safety protection
急停Emergency stop
断电断气功能Power off and gas cut-off function
有yes
自检功能Self checking function
开机时间监控，产能监控，设备故障信息及自动排异系统
Startup time monitoring, capacity monitoring, equipment fault
information and automatic rejection system
设备主要部分main part of the equipment
送板机（流水线），吸盘，三轴移动分板平台，吸尘器
board loading machine (assembly line), suction cup, three-axis moving board splitting platform, vacuum cleaner
工作方式operation mode
自动机械手在线分切送板Automatic manipulator on-line cutting and feeding board
使用范围Scope of application
插件/贴片后PCB板的双方向V槽Two-way V-slot of PCB after plug-in / SMD
Equipment appearance specifications
equipment supply requirements
equipment software
blade
Main control cut-board system
other functions
