Features

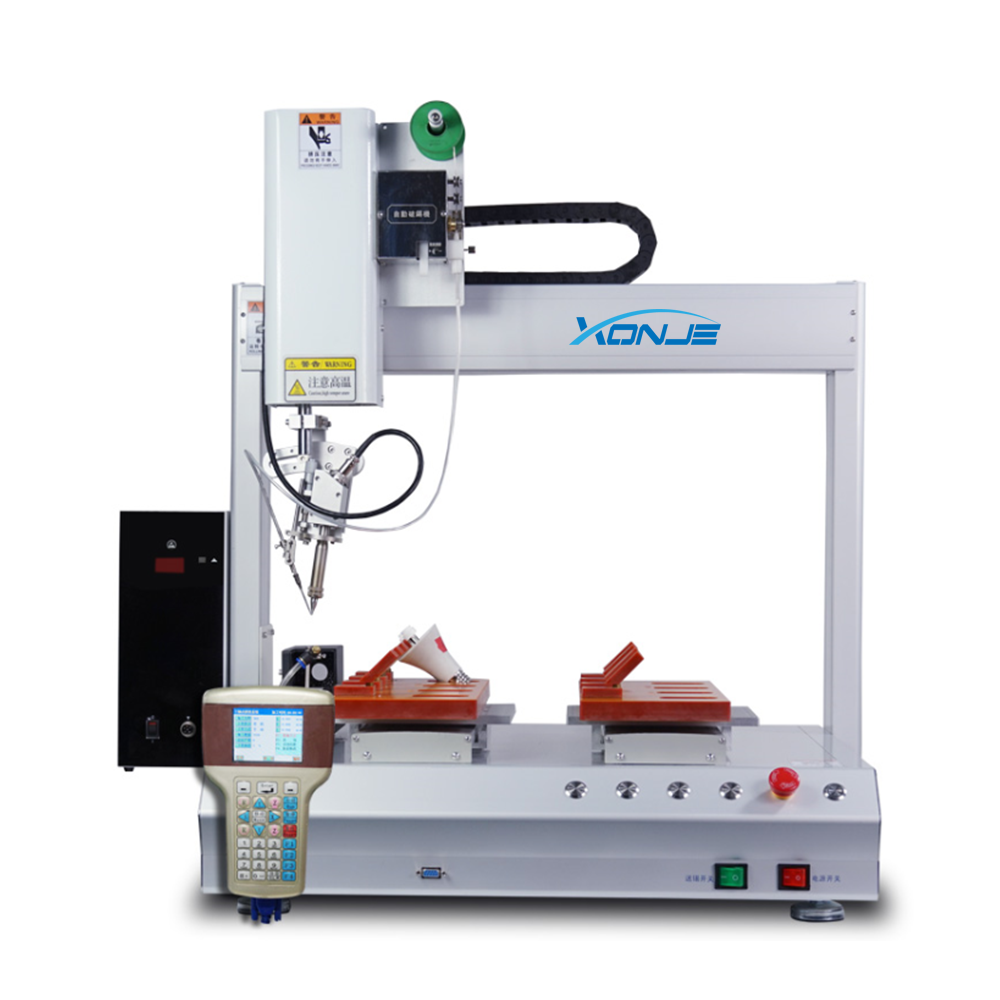

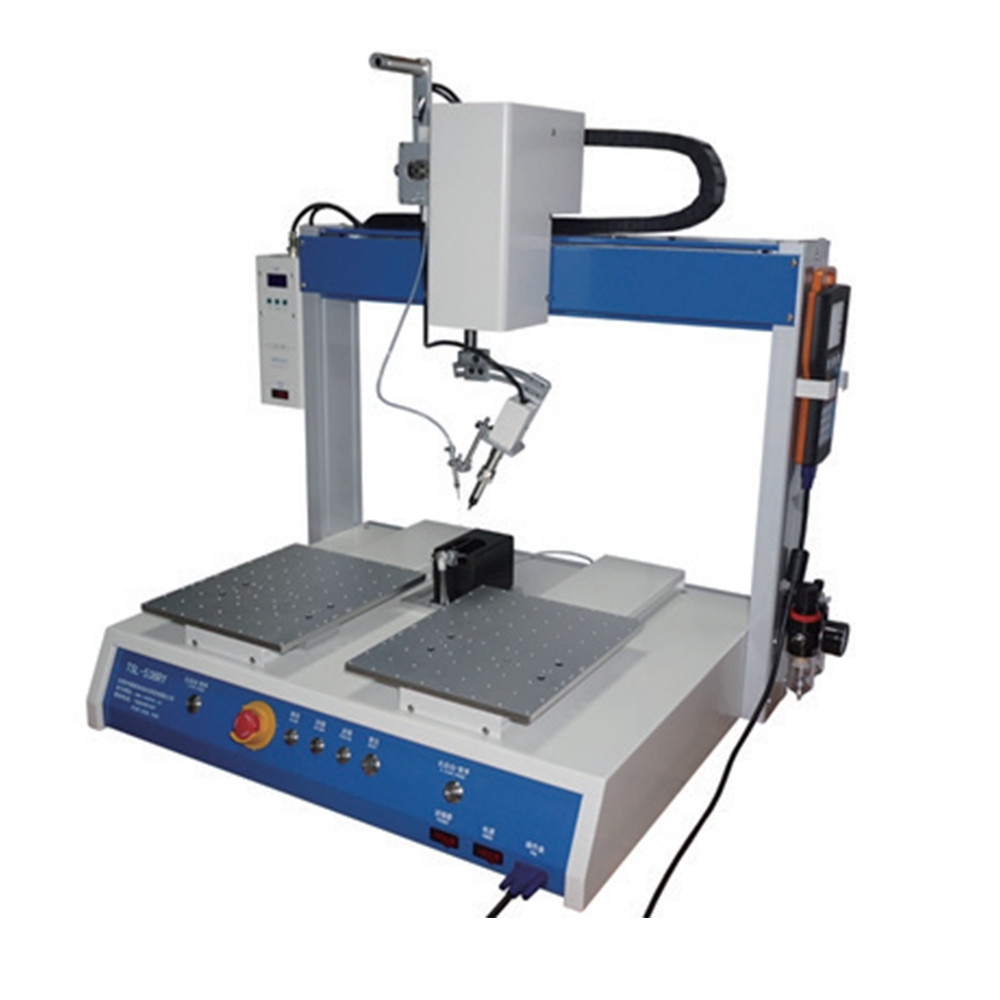

1. Double-station single-head rotary soldering machine, with double-station design so that there is no need to stop the machine to take in workpieces or fixtures during production, which effectively improves production efficiency. It is equipped with a rotating head operation function to make the equipment compatible with welding points of various angles.
2. Adopt double-station cyclic interchange working mode.
3. Five-axis double-head linkage synchronous soldering.
4. Flexible and diversified soldering methods, support spot soldering and drag soldering, set process parameters by yourself, adapt to various difficult jobs and micro soldering processes.
5. Large-capacity memory can set 500 soldering programs, 3999 soldering points can be set for each program.
6. The welding gun can be adjusted at any angle, and the welding head can be quickly replaced on the line.
Technical parameter
|
工作行程Working stroke |
500*300*300*80mm -360° |
轴数Number of axes |
5axis |
|
旋转角度Rotation angle |
360° |
有效载荷Payload |
10KG |
|
速度控制Speed control |
XY:MAX800mm/s Z:MAX300mm/s |
重复定位精度 Repeat positioning accuracy |
±0. 02mm |
|
程序容量Program capacity |
500组sets |
编程方式Programming mode |
手持编程器 Handheld programmer |
|
焊锡控制Solder control |
200W高频涡流智能温控器 200W high frequency eddy current intelligent thermostat |
温度范围temperature range |
50~500℃ |
|
温度精度 Temperature accuracy |
±2℃ |
送锡方式Tin feeding mode |
祥杰专利一滚轮压送（选配） XONJE patent-Roller press（optiona） |
|
送锡范围Tin feeding range |
Φ0. 4〜Φ1.6 mm |
功率power |
500W |
|
工作电压working voltage |
AC 220V 50HZ |
工作气压Working pressure |
0. 4~0. 7MPA |
|
机器尺寸Machine size |
720*570*725MM |
重量weight |
55KG |
