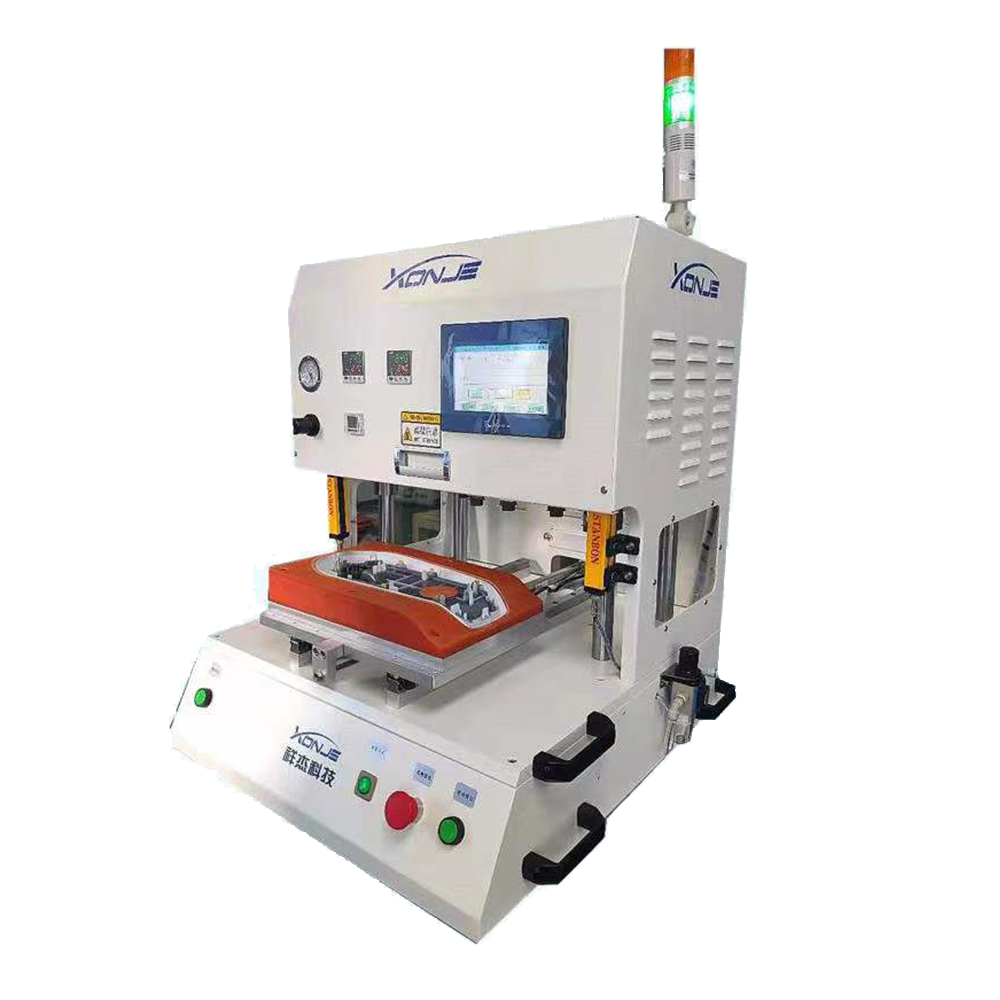

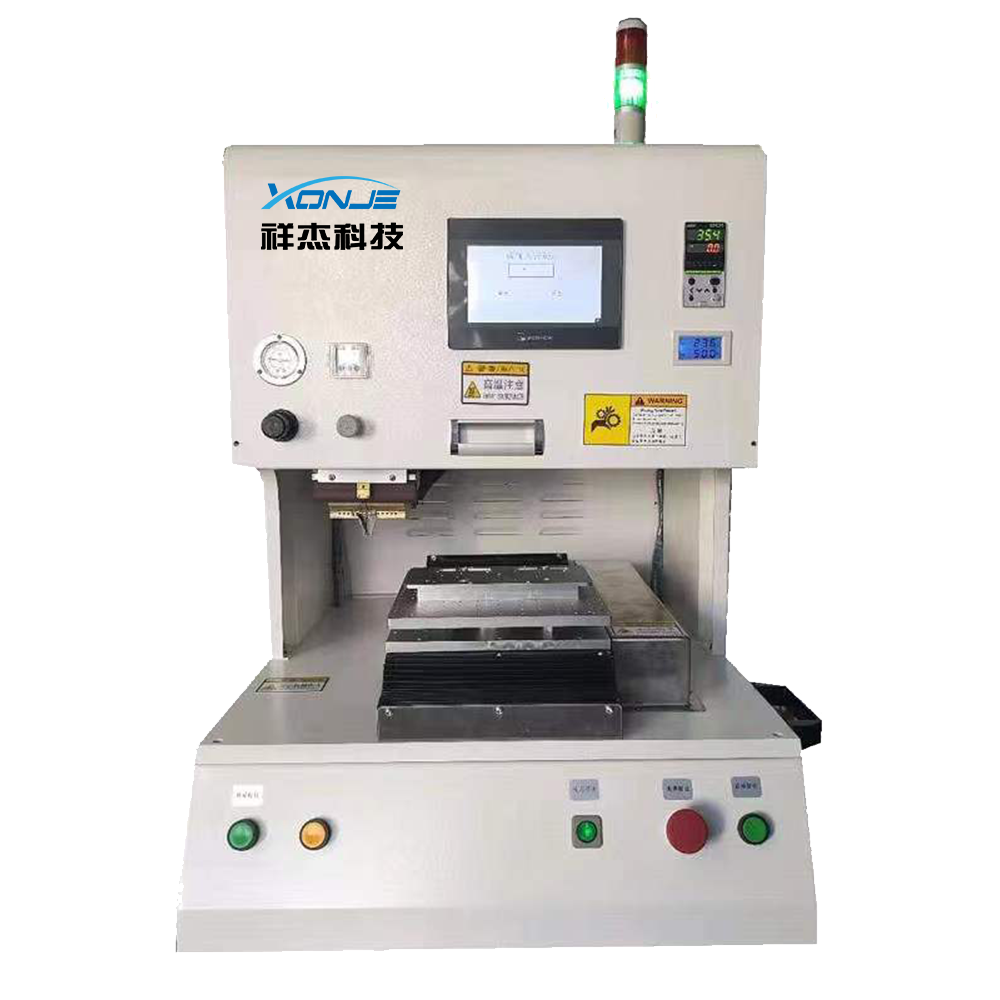

Features
1 .According to different products, the heating speed can be adjusted;
2. Welding joints of special materials to ensure that the product is evenly stressed;
3. Equipped with vacuum function, it is easier to adjust the alignment;
4. The temperature is numerically controlled, clear and precise, touch screen operation, Chinese and English display interface, PLC control, simple operation;
5. Equipped with a digital pressure gauge, the pressure range can be preset, SMC precision guide rail cylinder is used, the pressing precision is high, and the product with the solder joint spacing of 0.5mm can be welded;
6. Automatic platform access, convenient for operators to work quickly;
7.Equipped with high-definition CCD magnification and high-definition display alignment check to prevent defective products andensure that the product welding is completely correct;
8.Suitable for various high-density TAB, TCP crimping and FPC, FFC, TFT and PCB solder crimping.
*Solder connection between FPC and PCB and connectors.
*Connection between ACF and PCB and connectors.
*Connection between TAB and PCB and connectors.
*Connection between TFT and PCB and connectors.
*Solder connection between FFC(flexible flat cable) and PCB and connectors.
*Solder connection between zebra paper and PCB and connector.
*Solder connection between ultra-fine coaxial cable and PCB and connector.
*Solder connection of enameled wires such as hard disks.resistors,capacitors,coils,transformers,IC cards,etc.
*Solder connection between battery pole piece and PCB and connector.
*Soldering connection of winding terminals of small motors. Resin thermocompression bonding for relays, printers,glasses, etc.
Technical parameter
ÐͺÅmodel
XJPM-2A

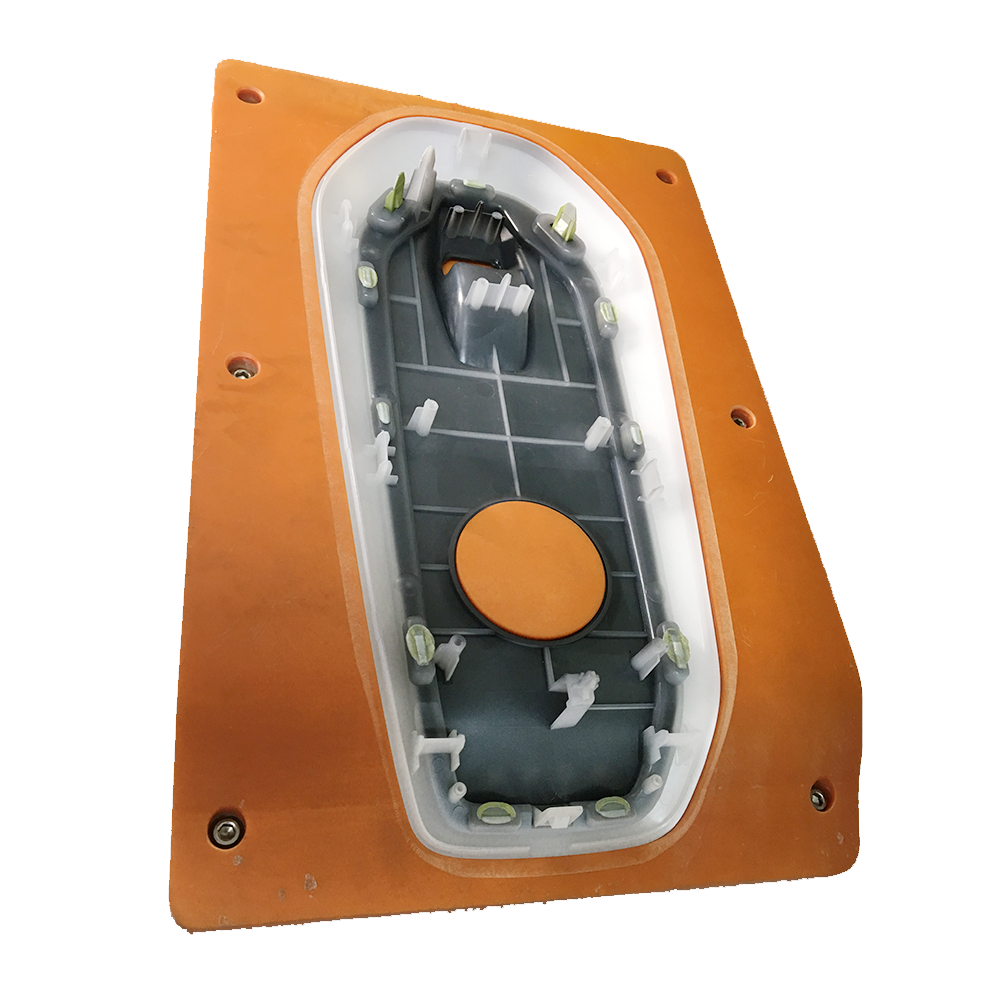

¶¨Î»Ò±¾ßPositioning fixture
1set
¹¤×÷Ãæ»ýWorking area
100*130MM
ʹÓõçѹUse voltage
220VAC 2.5KW
¹¤×÷Æøѹworking pressure
0.5-0.7MPA
»úÆ÷ÖØÁ¿Machine weight
100KG
³¤*¿í*¸ß£¨L*W*H£©
650*650*750MM
¼Óη½Ê½ Heating method
ºãμÓÈÈConstant temperature heating
¿ØÖÆζÈTemperature control
ÊÒÎÂ~350¡æ¿ÉÉèRoom temperature~350¡ãC can be set
¿ØÈTemperature control accuracy
¡À2¡ãC
