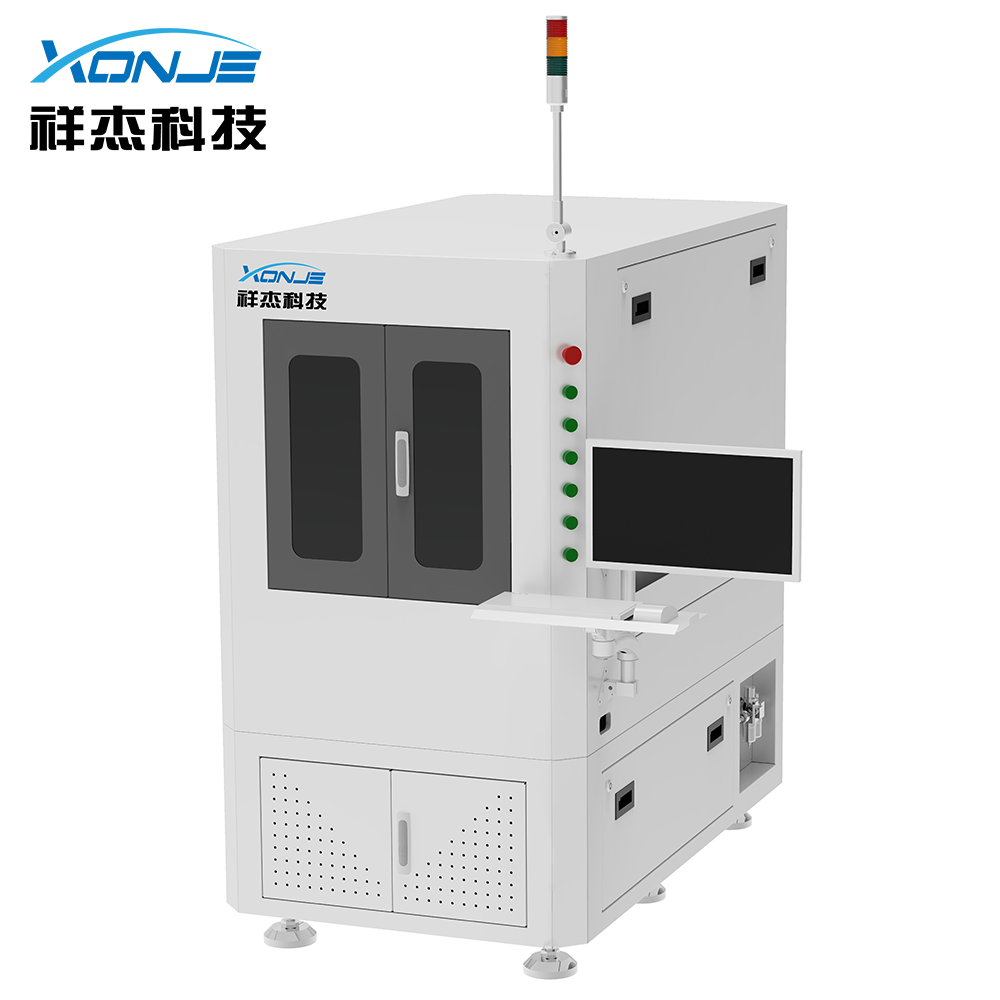

PCB FPC Laser separating machine

Model : XJ-E500A

Hotline: 400-832-9322

Features

1.Equipped with 15W 355mn ultraviolet laser with high peak power, stable power and low attenuation, no need to worry about the influence of power attenuation on cutting quality and speed;

2.Integrate CTI high-precision scanning galvanometer and Yokogawa high-precision linear motor platform, with high operating accuracy;

3. The professional cutting software can directly import the DXF graphics made by CAD, and cut according to the input graphics accurately to bring precise and efficient cutting;

4. After the optimized design of the optical path part, the speed and effect can be optimized under the same power, and efficient dust-proof treatment can be carried out at the same time, which can effectively reduce the maintenance cycle of equipment shutdown;

5. The equipment adopts a marble anti-vibration platform, the overall structure is stable and firm, and the integrated closed structure provides a guarantee for high-speed, high-precision, and high-yield production;

The software is compatible with all types of functions, simple operation, easy to learn and understand, and you can learn basic operations in a short time.

6.Suitable for SMT production line, mainly used for cutting FPC, PCB, fingerprint module, camera module, TYPE-C interface and all kinds of precision PCB/FPC boards with stress requirements in the production of 3C industry.

Technical parameter1

切割幅面Cutting area

350*350mm

最大切割产品尺寸Maximum cutting product size

L350*W350*T1.0mm

振镜扫描范围Scanning range of galvanometer

42×42mm

扫描速度Scan speed

≤5000mm/s

X、Y定位精度(X, Y positioning accuracy)

≤±3um

X、Y重复定位精度(X, Y repeat positioning accuracy)

≤±2um

平台移动速度

Platform moving speed

≤1000mm/s

CCD 定位精度

CCD positioning accuracy

±3um @130万像素

(±3um @1.3 million pixels)

最小切割线宽

Minimum cutting line width

≤30um

最大切割厚度

Maximum cutting thickness

1.0mm(建议)

1.0mm (recommended)

综合切割精度

Comprehensive cutting accuracy

≤±30um

设备外形尺寸

Equipment dimensions

L1100*W1200*H1650mm

设备重量equipment weight

1200kg

Technical parameter2

部件part

型号model

特点Features

激光器Laser

15W紫外固体激光器

15W UV solid-state laser

功率稳定,衰减小

Stable power, low attenuation

直线电机平台Linear motor platform

祥杰定制

Xiangjie customization

高速稳定

High speed and stability

4轴运动控制器4-axis motion controller

GTS-400-PV-VB-PCI

定制custom made

工控机Industrial PC

4U机箱Chassis/电源power 300W/H61主板motherboard/i5-2400/4G/500G

专用工控机

Dedicated industrial computer

扫描振镜Scanning galvanometer

CTI

美国进口

Import from America

切割软件Cutting software

自主开发

Independent development

精密切割专用软件,集成视觉自动定位

Special software for precision cutting, integrated vision automatic positioning

大理石平台Marble platform

章丘石

Marble from Zhangqiu

专利设计

Patent design

除尘机Dust Collector

4KW 380V 3P 4KW

专为激光精密切割定制

Customized for laser precision cutting

治具fixture

定制专用治具

Customized special fixture

依客户产品定制

Customized according to customer products

冷水机Chiller

/

精准控温

Precise temperature control
