Features
1. The structure is simple and easy to use.

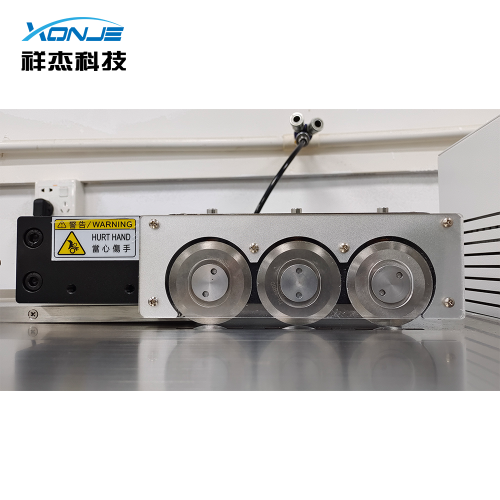

2. There are 3 blades on the upper and lower sides, the upper round knife is fixed during the cutting process, and the lower round knife rotates and cuts. The number of blades can be customized.
3.It can be used for Vcut with a narrow cutting pitch, with high efficiency and good segmentation quality.
4. According to the depth of the V groove and the tool wear, the distance between the upper round knife and the lower round knife can be adjusted accurately.

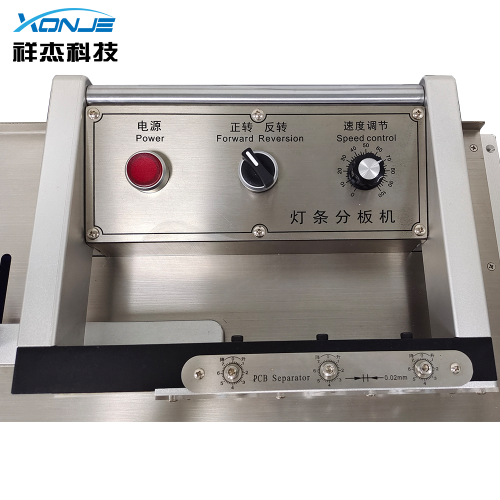

5. The slitting speed is controlled by the knob, and there are baffles installed on both sides of the round knife, which has high safety.
6. The round knife can be used for repeated grinding.
Technical parameter
|
分板长度 Maximum cut-board length |
不受限制 Unrestricted |
|
分板速度 Board splitting speed |
0-400mm/s |
|
分板厚度 Board thickness |
0.6-3.5mm |
|
使用电压 Working voltage |
220V AC 500W |
|
机器重量 Machine weight |
45kg |
|
外形尺寸 Dimensions(L*W*H) |
1000*520*280MM |
|
加平台的尺寸 Added platform size(L*W*H) |
2400*520*280MM |
