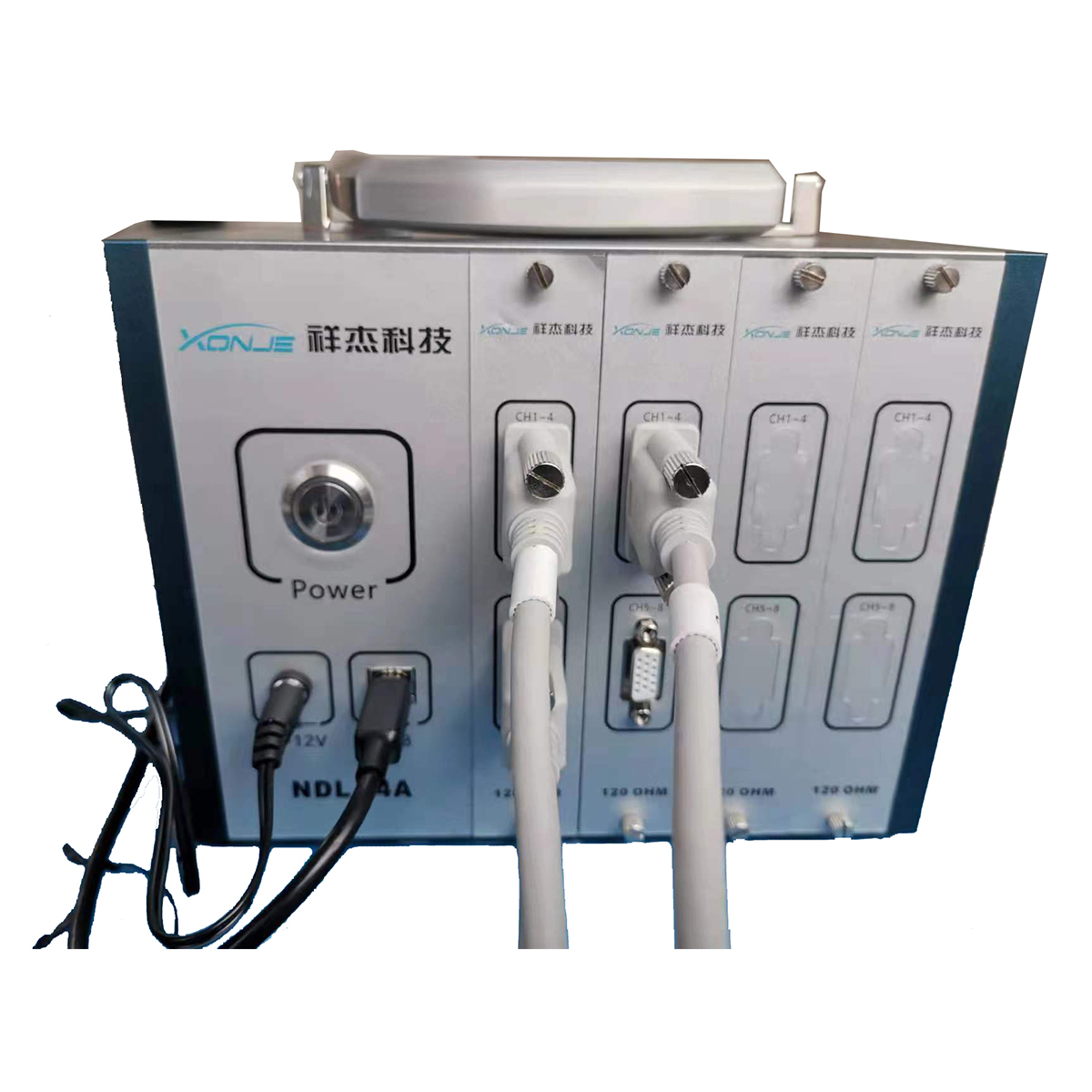

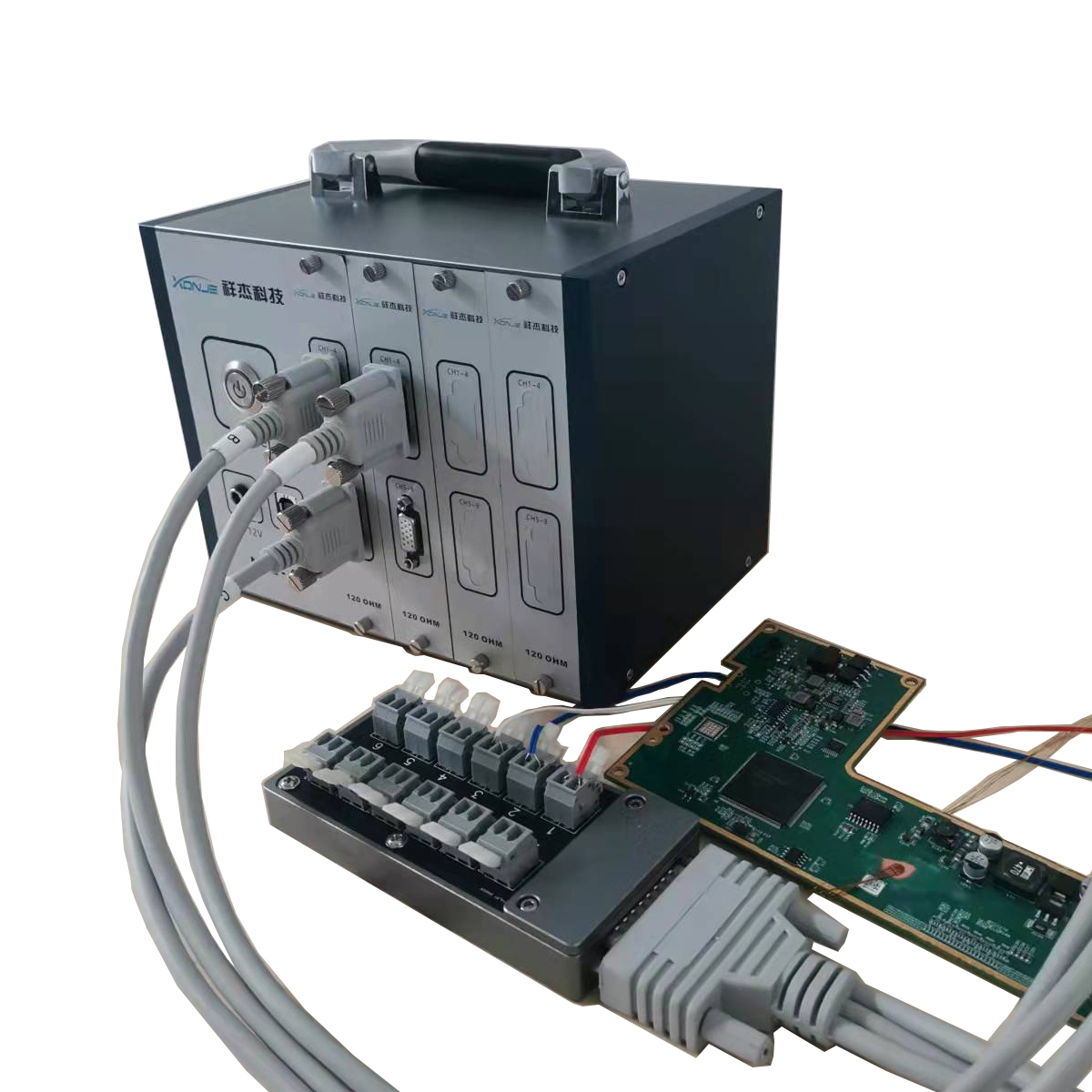

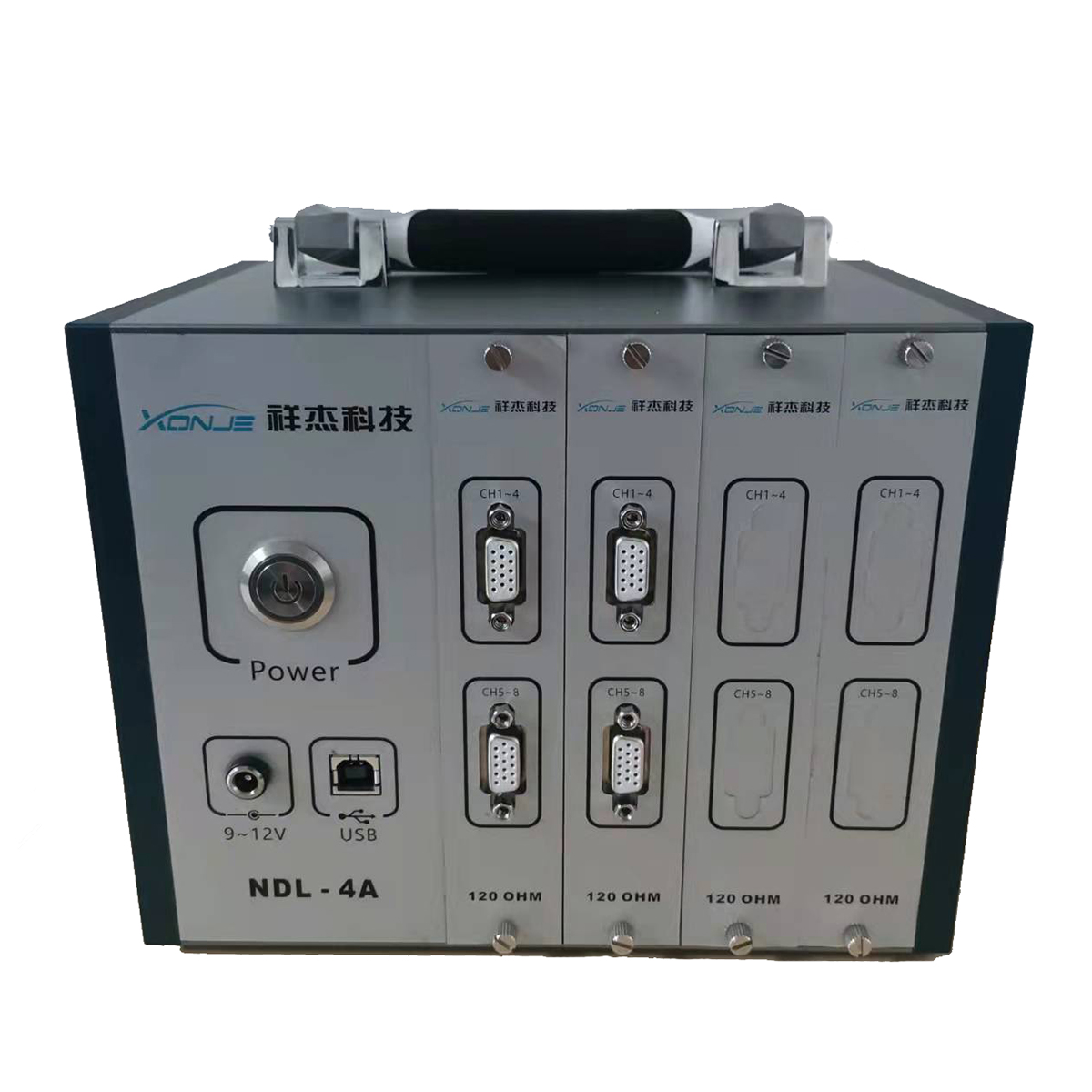

Features
1. It adopts a modular approach, each strain module has 8/4 acquisition channels, which is not expandable.
2. Through the USB interface connection, it can store long-term data on the hard disk of the host.
3. The collected signal is a 120/350 ohm strain gauge (different modules are used).
4. The highest sampling rate is 10KHz (8/4 channels are simultaneously sampled).
5. The operation menu is in the form of a dialog box with a Chinese/English interface, which is simple and fast.
6. Combining the international strain gauge test standard Intel standard and IPC-9704 standard, one-key automatic report generation, and judge ,'Pass" or "Failed".
Technical parameter
单模块通道数：8/4个模拟输入通道
Number of channels per module:8/4 analog input channels
最大采样率 Maximum sampling rate
80KS/S/机箱 (80KS/s/chassis)
采样模式 Sampling mode
多通道同步采样 Multi-channel simultaneous sampling
ADC分辨率 ADC resolution
24位(24bits)
支持应变式传感器电阻值 Support strain gauge sensor resistance value
支持120Ω(Supports 120Ω)
支持惠斯通电桥类型 Support Wheatstone bridge type
1/4桥(1/4 bridge)
转换精度 Conversion accuracy
3.5062nV/V/LSB
精度增益误差 Accuracy gain error
0.02%(已校准，常规测量条件25℃,±5℃)
0.02%(calibrated,conventional measurement conditions25℃,±5℃)
全量程范围 Full range
±29.4mV/V(+62500uE/-55500uE)
端子间过压保护 Overvoltage protection between terminals
±30V
稳定性 Stability
增益漂移6ppm/℃(Gain drift 6ppm/℃)
机箱接口类型 Chassis interface type
USB2.0高速输入(USB2.0 high-speed input)
供电电源 Power supply
11到30VDC,220VAC(11to30VDC,220VAC)
工作温度 Working temperature
-40℃~70℃,工作湿度:10%~90%RH,无凝结
-40℃~70℃,working humidity:10%~90%RH,non-condensing
存储 Storage temperature
-40℃~85℃,存储湿度:5%~90%RH,无凝结
-40℃~85℃,storagehumidity:5%~90%RH,non-condensing
防护等级 Protection level
IP40
